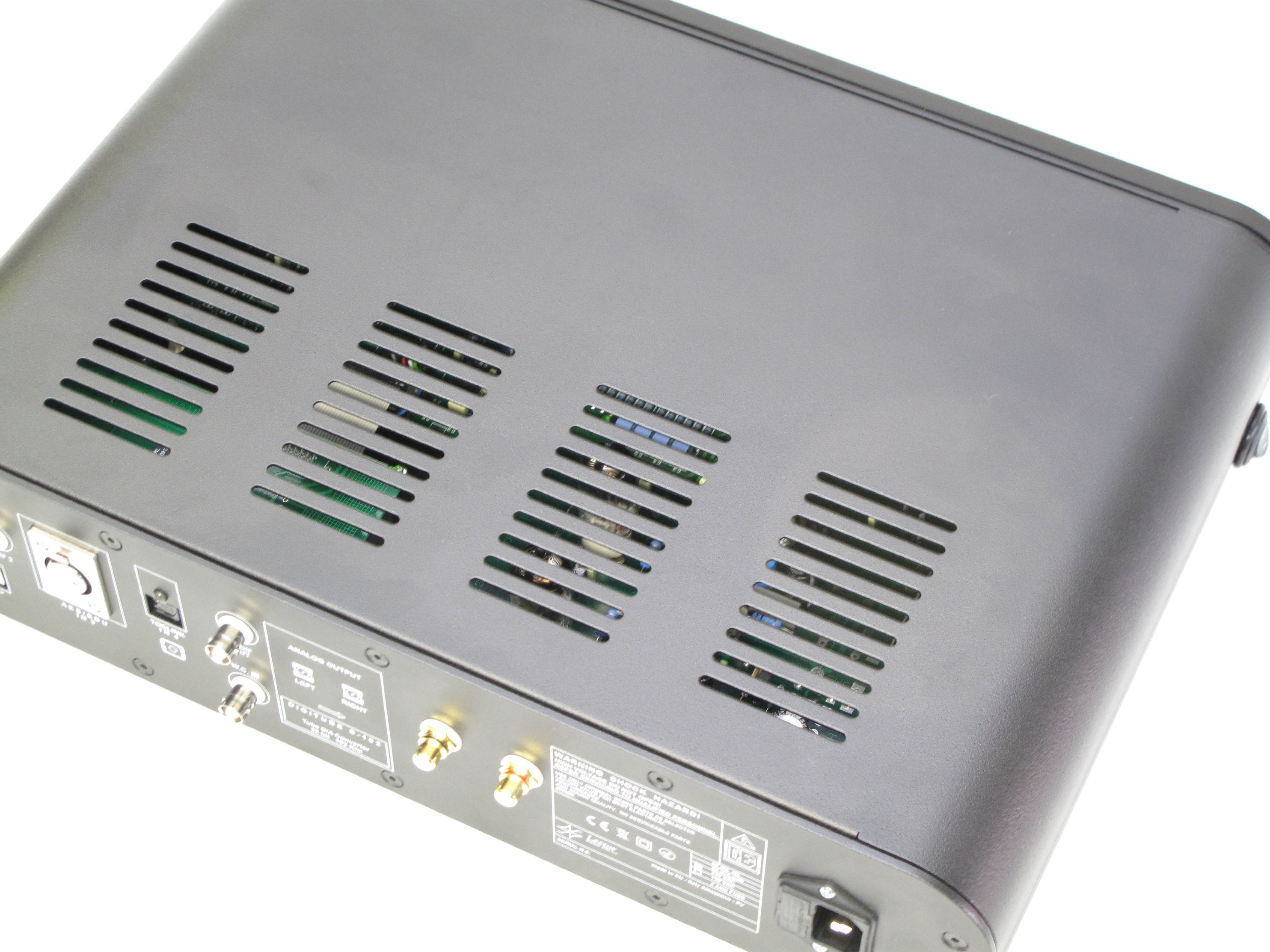

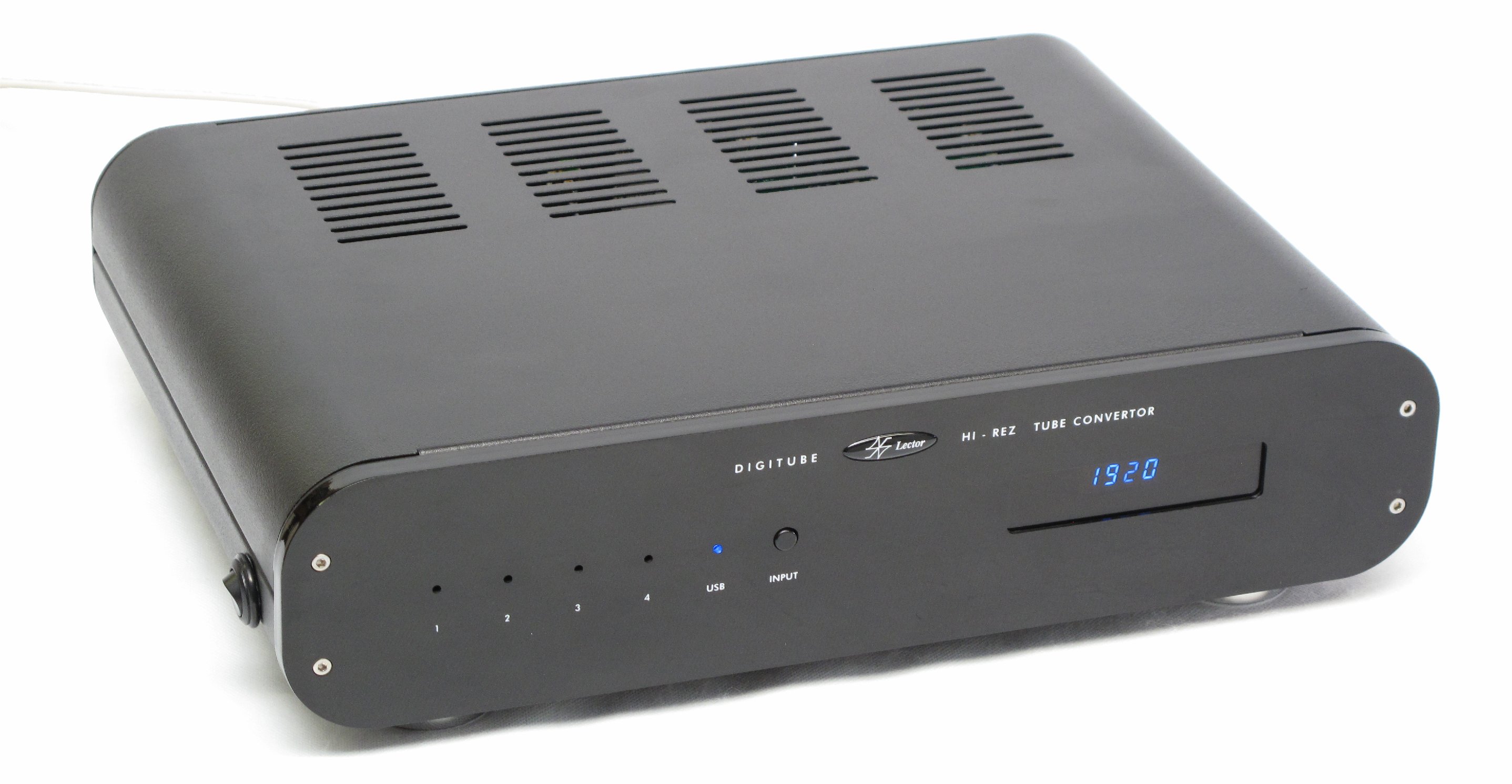

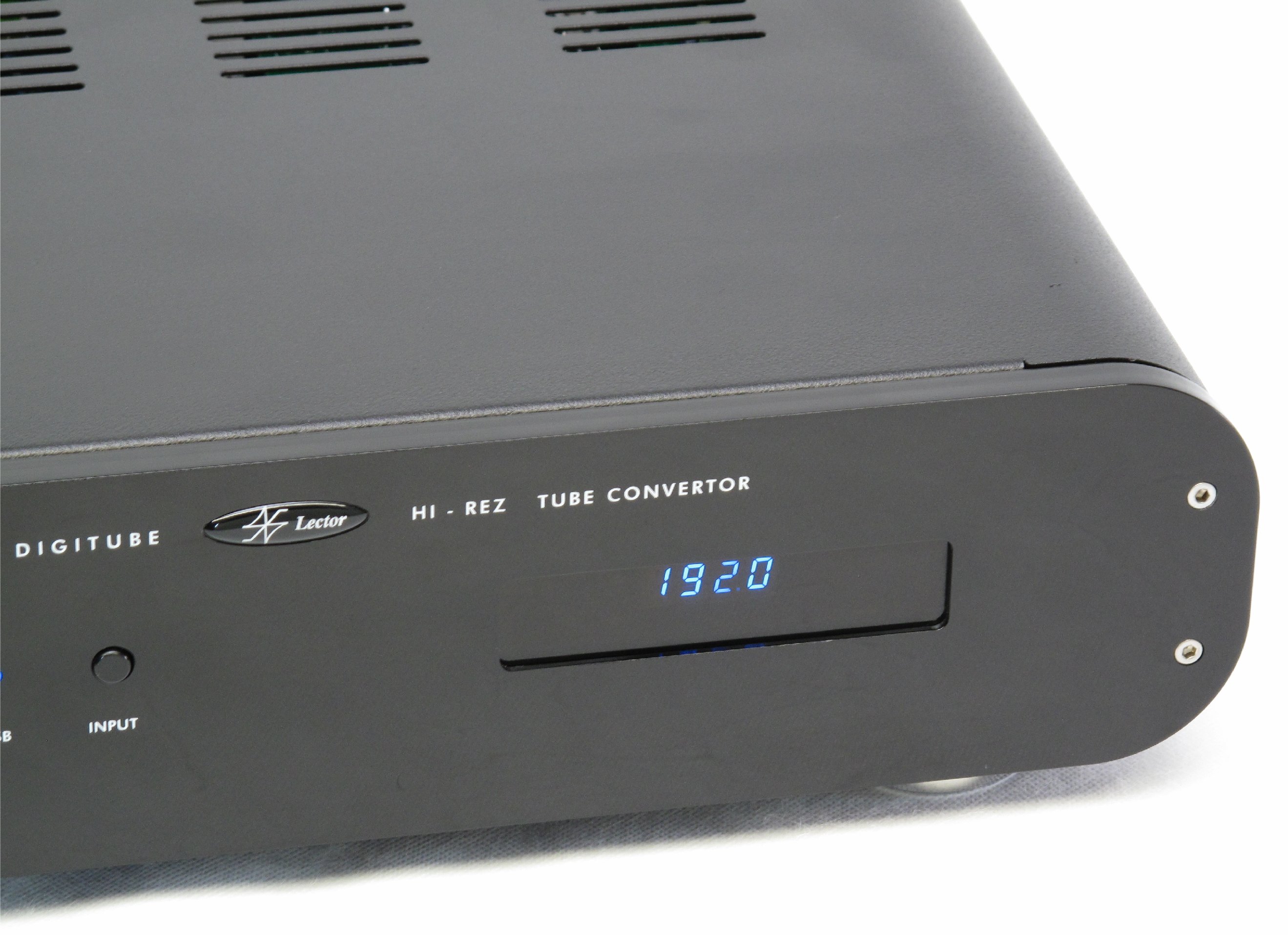

LECTOR DIGITUBE S-192 HI-RESOLUTION Röhren-DA Wandler
Produktnummer:
SW11319
Produktinformationen "LECTOR DIGITUBE S-192 HI-RESOLUTION Röhren-DA Wandler"
The new Digitube S-192 digital tube D to A converter is based on 32 bit high-resolution dac, output circuits is design
around vacuum tube type miniwatt @ real valve output.
Digital signals are accepted up to 192 kHz 32-bit on all inputs, USB input too.
The Digitube S-192 is also equipped with word clock input and digital spdif output for general purpose application.

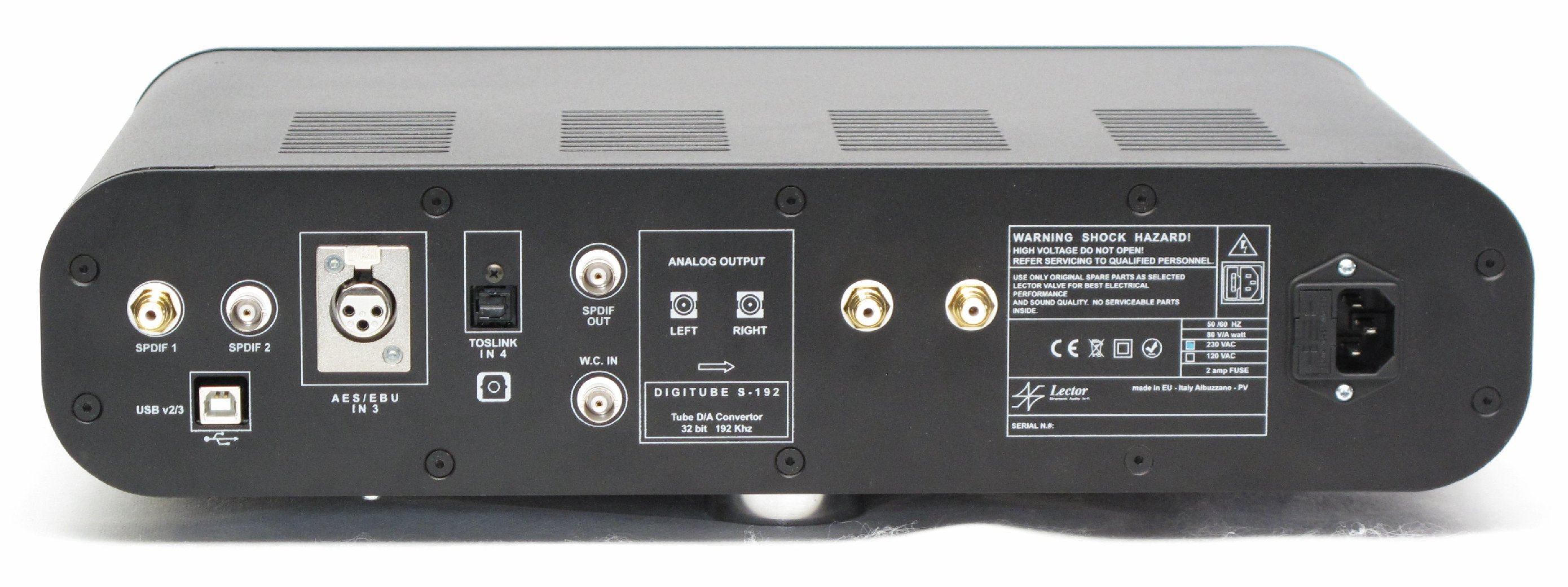

The digital inputs are:
Spdif IEC-958 as RCA connector @ resolution 192 Khz 32 bit
Spdif IEC-958 as BNC connector @ resolution 192 Khz 32 bit
AES-EBU AES-3 as XLR connector @ resolution 192 Khz 32 bit
Opto toslink digital input @ resolution 192 Khz 32 bit
Asyncronous USB PC/MAC input @ resolution 192 Khz 32 bit support stable KS/WASAPI protocol
Output / input digital services :
Word Clock (W.C.) clock input
Spdif as BNC output
Analog output :
unbalanced output as 2.5 volt 250 ohm
Performances:
Input selector by sequential single shot by push button, led indicator for selected input.
Sampling frequency display measured on real dac converter frequency
Led lock for spdif/aes-ebu input
Windows driver for XP/Vista/Seven/8 and ASIO driver
No any driver required for OSX-Apple mac computer ( the USB interface is native)
